The 17.368 capacity “Pino Zaccheria” stadium, the home field of Foggia soccer team, recently underwent an in-depth upgrade in order to meet the latest specifications for the country’s Serie B (the equivalent of the second division). The work included a new sound reinforcement system, supplied by Centro Cultura Musicale with Outline products.
Designed using Outline Open Array 3D software by the company’s senior system engineer Francesco Ferretti, the system is used to play recorded music before matches, announcements, publicity, team line-ups, announcements for the substitution of players, safety announcements, etc.

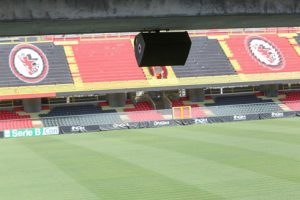

The upper tier of the roofed west stand is covered by six Outline Vegas 12 CX two-way, full-range coax speaker enclosures installed under the roof. The same format is used with four more Vegas 12 CX for the lower tier, installed under the upper tier of the stand.
The lower tier of each of the north and south curves is covered by four Vegas 12 CX installed under the upper tier, and the lower tier of the open air east stand seating features six Vegas 12 CX mounted below the upper tier. The upper tier of the seating on the each of the curves’ and the open air stand are covered by four Stadia 100-30 long-throw DPRWG loudspeaker systems. Each curve has a Stadia mounted on one of the ground’s lighting pylons and the stand has two mounted over the centre of the main stand’s roof.
The Outline powerhouse for the entire set-up comprises four T-Five-DSP 2-channel PWM power amplifiers and four M5000-4 4-channel PWM amps and the complete system is controlled by four of Outline’s iP24 multi-function DSP processors.
Outline loudspeakers were also installed outside the pitch, in the turnstile zone, in the form of six Eidos 15 two-way full-range enclosures, powered by an Outline M5000-4 four-channel PWM power amplifier.
Augusto Rinaldi of Centro Cultura Musicale stated: “The sound reinforcement system is particularly effective as well as ensuring that there is no sound spill into the surrounding zones. The set-up’s user-friendliness is definitely the icing on the cake and the public has appreciated and acknowledged the results, which exceeded all of our expectations.”
